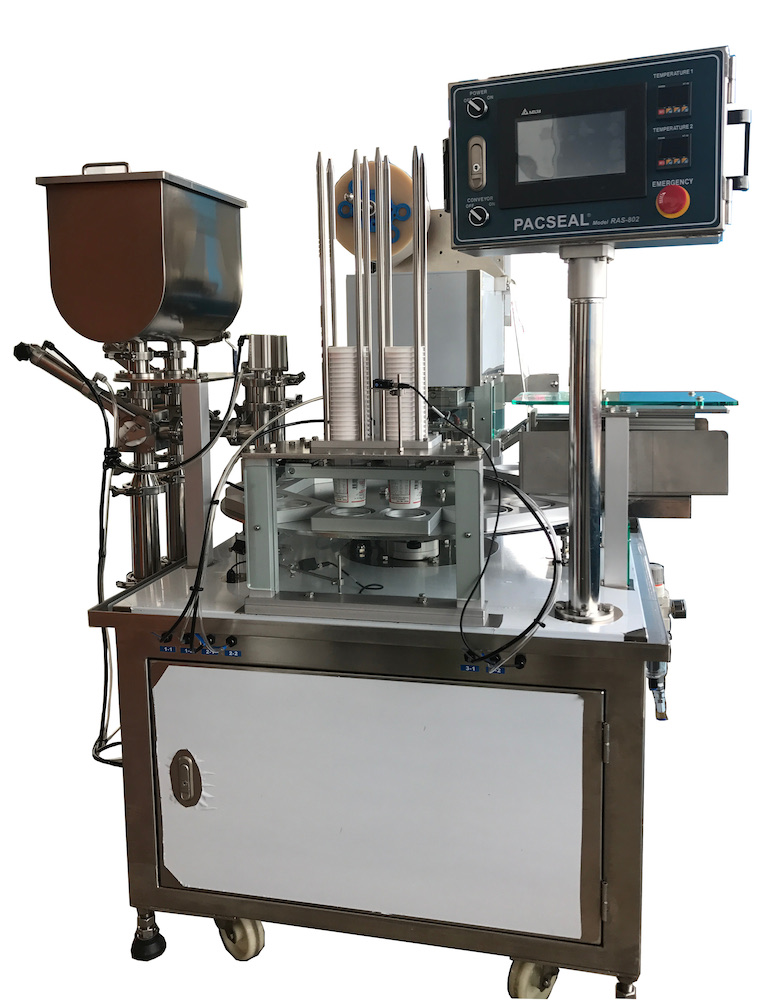

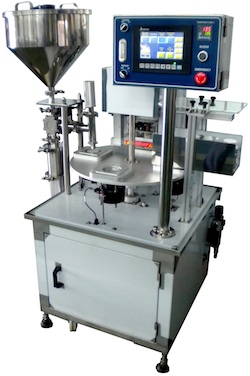

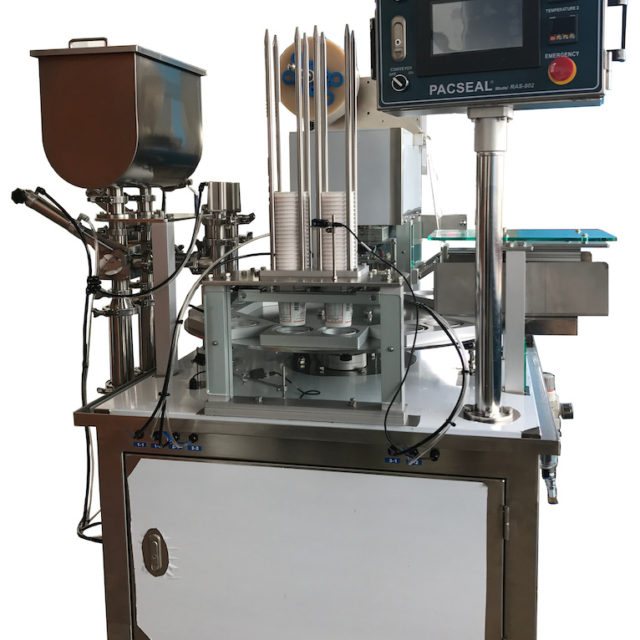

Automatic Rotary Cup / Tray Sealer
The Pacseal RAS series consists of both Rotary Tray Sealer and Rotary Cup Sealer. Our RAS Series by UTOC is a high-quality rotary turntable fully automatic cup and tray sealing machine designed for medium to large production scale. With its advanced features and user-friendly interface, this machine is ideal for sealing cups and trays with precision and efficiency.
Optional devices, such as the tray detester, filling station, and date coding stations, can be seamlessly integrated into the machine to further enhance its functionality. Our twin cavity machines are capable of producing up to 1600 cups/trays per hour. Trust in the Pacseal RAS series for all your food packaging, cup, and tray sealing needs.
- Features
- Specifications
- Brochure Download
- Demo Video
- PLC with Index Gear Conveyor, Inverter Speed Control
- Touch Screen Operation.
- Stainless Steel frame and Anodized Aluminium.
- Possible film length selection by Sensor, Encoder, Timer.
- Suitable for both printed & plain film.
- Profile Sealing and Cutting according to cup/tray shape
- Interchangeable sealing tool. (sealing and base mould)
- Compact footprint with large output capacity.
| Model | Machine Size (mm) WxDxL |
Power | Capacity/Hr Approx. (Sealing Cycle Only) |
Max Cup/ Tray Size |
|---|---|---|---|---|
| RAS801-4 | 950x950x1500 | 220V-50/60Hz | 750 | 220x170x100 |
| RAS801-6 | 950x950x1500 | 220V-50/60Hz | 800 | 180x150x100 |
| RAS801-8 | 950x950x1500 | 220V-50/60Hz | 900 | 170x90x100 |
| RAS802-4 | 950x950x1500 | 220V-50/60Hz | 1400 | 170x95x100 |
| RAS802-6 | 950x950x1500 | 220V-50/60Hz | 1600 | 160x75x100 |
| RAS802-8 | 950x950x1500 | 220V-50/60Hz | 1800 | 90x75x100 |
| RAS851-2 | 700x700x1450 | 220V-50/60Hz | 600 | 230x180x100 |
| RAS851-4 | 700x700x1450 | 220V-50/60Hz | 720 | 170x120x100 |
| RAS851-6 | 700x700x1450 | 220V-50/60Hz | 800 | 100x100x100 |
| RAS851-8 | 700x700x1450 | 220V-50/60Hz | 900 | 80x80x100 |
